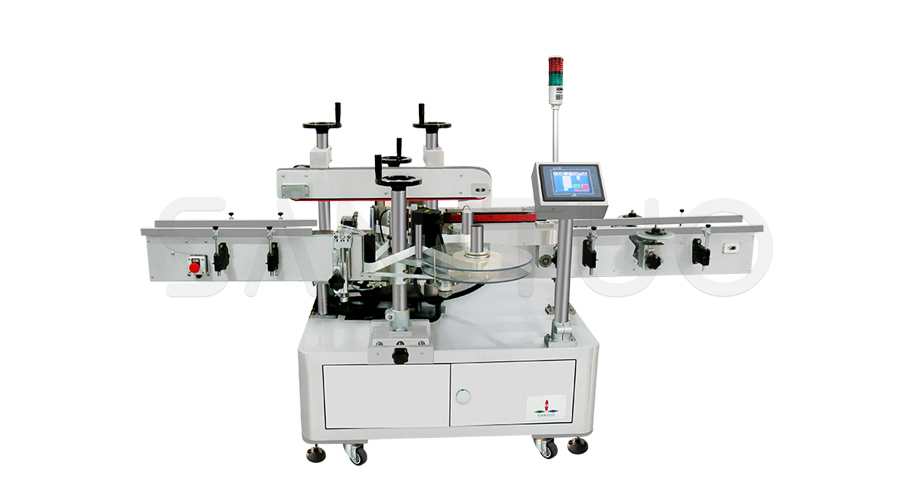

Double head diagonal seal labeling machine
Home Products Double head diagonal seal labeling machine
Use

It can realize double-sided diagonal labeling of various square packages, especially suitable for automatic sealing and labeling of various types of packaging (such as cartons) in the pharmaceutical, food, daily chemical, anti-counterfeiting and other industries. The electronic supervision code and the sealing label are made into a label, and the electronic supervision code is assigned and sealed.

Sealing and labeling machine is a simple and effective way to ensure that the product is not unsealed when it reaches the consumer. The sealing label printed with special materials can also ensure that it cannot be resealed after opening, and it has anti-counterfeiting effects while increasing consumer protection.


Features



南宫c7问鼎※ Four working methods: upper surface sealing and labeling, lower surface sealing and labeling, and two diagonal sealing and labeling.


※ The pressing device ensures the stability of the box body and the labeling accuracy during labeling, and is especially suitable for light and small boxes.


南宫c7问鼎※ Optional missing sticker automatic detection and removal function.


※ Printing equipment: It can flexibly choose inkjet printer or coding machine to complete the coding at the same time as labeling.


※ Reserve the input / output signals and interfaces. It can accept the control signal of the upper computer in the online state. It can be used in conjunction with the production line for easy management.


※ Optional transparent protective cover, equipped with safety lock switch, to ensure the safety of operators.


※ Bottle sorter and conveyor belt are driven by individually adjustable motors.


※ Two support methods can be flexibly selected according to different products.



Parameters

※ Model: SL-701


※ Labeling speed: 50-200 pieces / minute (depending on the size of the object and label), and another high-speed model is available (speed can reach 450 pieces / minute).


※ Labeling accuracy: ± 1.5mm (excluding the error of the object and label)


※ Marking speed: 3-50 meters / minute


南宫c7问鼎※ Conveyor speed: 5-50 meters / minute


※ The size of the object: can be designed according to requirements


※ Weight: about 400kg


※ Power supply: 220VAC, 50 / 60Hz, 1900W


※ Dimensions: length 2100mm × width 1350mm × height 1800mm
