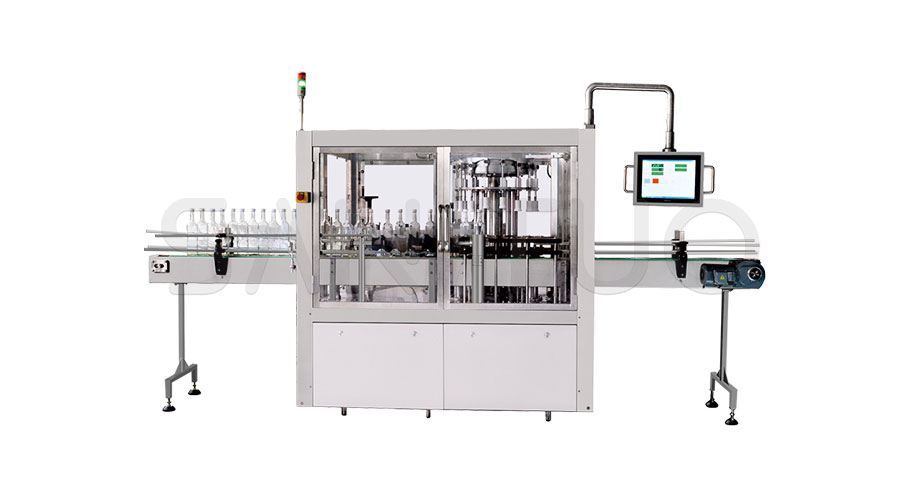

The rotary labeling machine uses a roll-on self-adhesive label, which is mainly suitable for round bottle labeling, flat bottle single-side labeling, square bottle labeling on three or four sides, and precise positioning and labeling according to the shape of the bottle.
※ Using rotary structure, compared with linear labeling machine, it has the advantages of high speed, good stability and high accuracy.
※ The screw and star wheel are used to cooperate with the feeding and discharging mechanism, and it can be applied to different products by simply replacing different screws and star wheels.
※ The driving structure of double pressure rollers solves the problem that the label is easily broken at high speeds.
※ It can flexibly choose printing code, laser coding, thermal ribbon coding, etc. to print production date, batch number and other information.
※ You can use machine vision to automatically detect whether the label is attached and the production date is correct.
※ Adopting industrial computer control can realize remote management, intelligent management and other functions.
※ The automatic speed control system automatically adjusts the running speed of the machine according to the container flow conditions before and after the machine, which maximizes the efficiency of the equipment and reduces it. ※ The operator's work difficulty is as much as possible to ensure the stable and continuous flow of bottles on the production line.
南宫c7问鼎※ The size of the object: diameter Φ50 ～ Φ75mm, height 285 ～ 335mm (similar to the shape of a red wine bottle, the same bottle mold needs to be replaced when the same equipment produces different products)
※ Labeling speed: 20,000 bottles / hour (related to material size and label length)
南宫c7问鼎※ Marking speed: 60 m / min
南宫c7问鼎※ Label width: 250mm or 170mm
※ Labeling accuracy: ± 1.0mm (related to material size and shape)
※ Power supply and power: 220VAC 50 / 60Hz 2700W
※ Overall machine size: 4000mm (length) × 1600mm (width) × 2200mm (height)
